Single roller mills

Compact machine for large, chunky samples

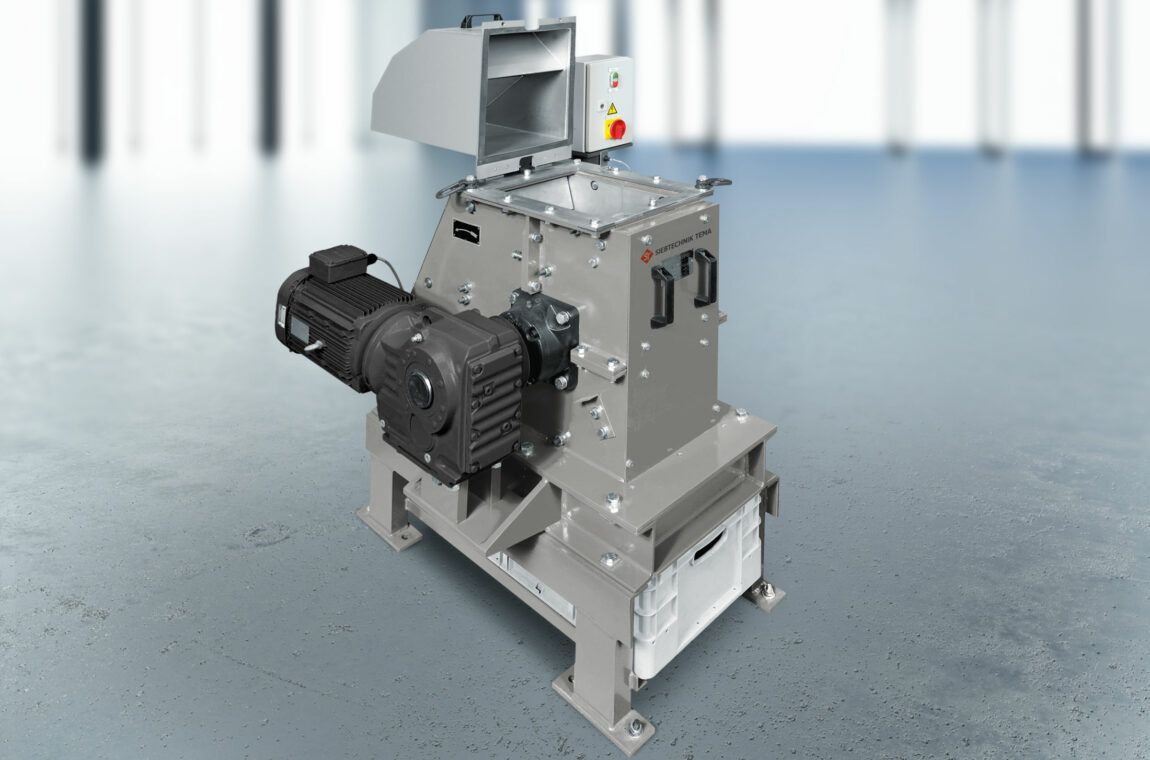

SIEBTECHNIK TEMA single roller mill in the laboratory version

Crushing & Milling in the single roller mill takes place between a rotating roller and a crushing wall. The ground material is drawn into the crushing gap and crushed by pressure and shearing until it can leave the gap.

Mechanical features of our single roller mills

Our Roller Mills are equipped with:

A degree of shredding

of usually 1:5 … 1:15, whereby a maximum of 1:30 can be realized.

An infinitely adjustable crushing gap

The crushing wall, which is supported by pre-tensioned rubber elements, allows infinitely variable adjustment of the crushing gap.

A reversible overload protection

The spring assemblies allow the movable crushing wall to evade smaller, non-breakable materials.

Stepped arrangement of the crushing wall

Improves the feeding of coarse material

Crushing bars on the roller

which can be adjusted in height by underfeeding, thus improving the feed behavior and changing the throughput rate. The comb crusher bar design offers further advantages in terms of feed behavior, especially with moist feed materials.

Segmented housing

enables the removal of a housing segment to replace the crushing bars and the wear plates on the roller body.

Downloads

Gallery

Estás viendo un contenido de marcador de posición de Predeterminado. Para acceder al contenido real, haz clic en el siguiente botón. Ten en cuenta que al hacerlo compartirás datos con terceros proveedores.

Desbloquear contenido
Más información
SIEBTECHNIK TEMA single roller mill - View of the roller with crushing bars
Single roller mill - view of the roller with crushing bars

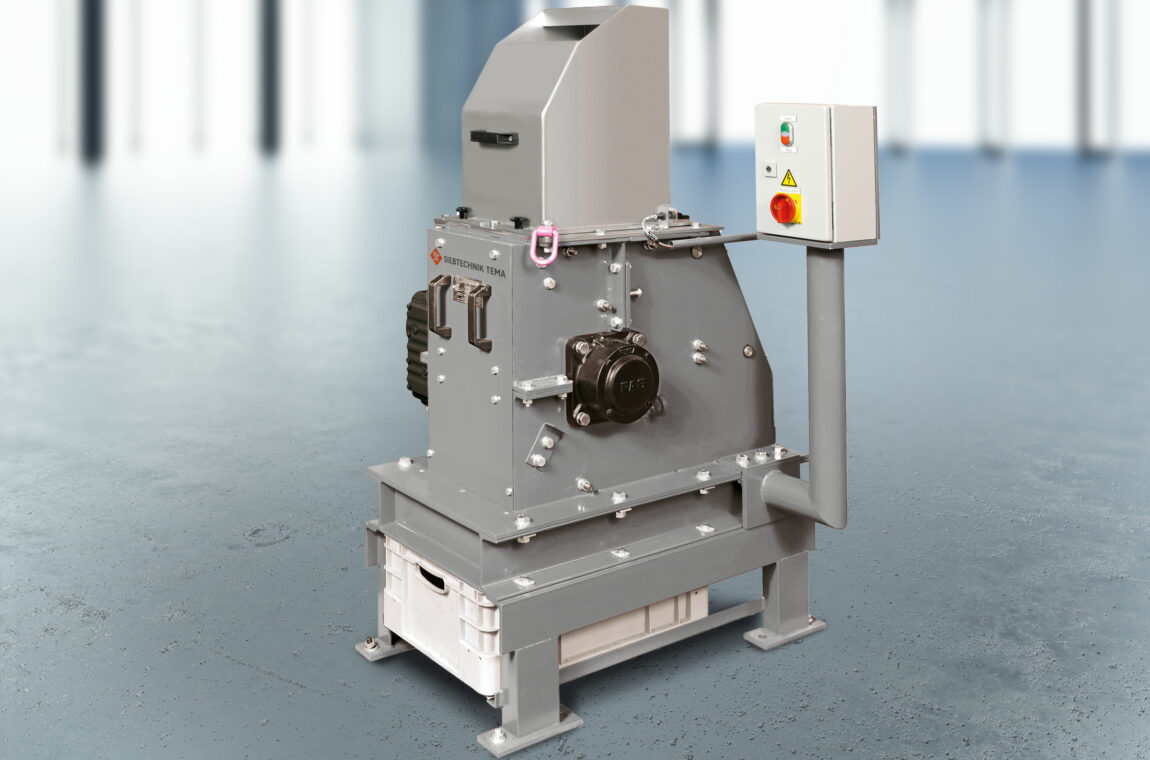

SIEBTECHNIK TEMA single roller mill in the laboratory version
Single roller grinder EW3025-L

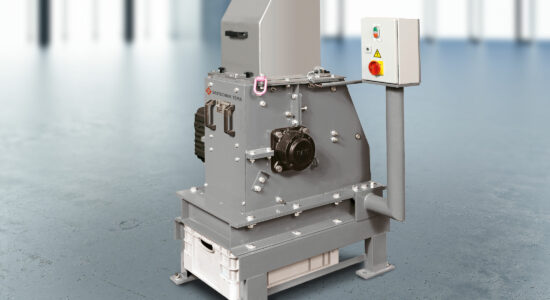

SIEBTECHNIK TEMA single roller mill in the laboratory version
Single roller grinder EW3025-L
Double roller grinder WS 250x150-L with innovative app control

Double Roller Mill – Laboratory

Gentle Crushing & Milling, production of small quantities of fines, hardly any increase in product temperature, rollers available in many materials.

Leer más
Single-toggle crusher / jaw crusher EB150x100 TL in the laboratory. The device's grinding chamber is open, 2 sub-units are next to the device. The smartphone with app control is switched on and ready for operation

Jaw crusher – Laboratory

Our jaw crushers for coarse crushing of brittle, medium-hard to hard materials are now also available with an integrated divider.

Leer más
