Downpipe swivel sampler

Representative sampling even in confined spaces.

Downpipe swivel sampler. Cropped image. Typical applications: Salt or electrical scrap processing

Taking bulk material samples over the entire chute cross-section for low installation heights.

Advantages of Downpipe swivel samplers

  • Single sample over the entire cross-section
  • Easy to integrate into systems via flanges
  • Low installation height
  • Sample spoon parks outside the product flow

Operating behavior & mechanical features

Representative sampling is carried out using a slotted vessel, which is swung through the material flow in a circular motion at a constant speed.

While the slotted vessel is rotated through the material flow, a sample is taken from the material flow and collected in the slotted vessel. This is then emptied by opening the movable base above the sample discharge chute. After complete emptying, the slotted vessel swivels back into the waiting position.

The waiting position of the slotted vessel is outside the main material flow in order to maintain the full chute cross-section and to protect the slotted vessel from permanent material impact.

The swivel movement of the slotted vessel can be carried out either by a pneumatic cylinder or by a three-phase motor.

Downloads

Gallery

Estás viendo un contenido de marcador de posición de Predeterminado. Para acceder al contenido real, haz clic en el siguiente botón. Ten en cuenta que al hacerlo compartirás datos con terceros proveedores.

Desbloquear contenido
Más información

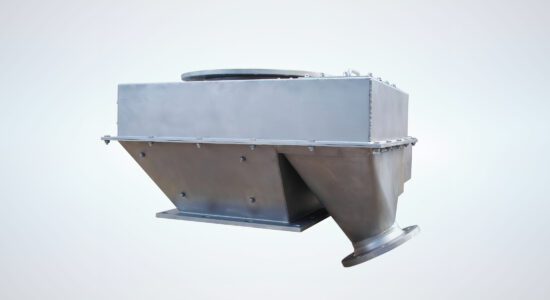

Downpipe swivel sampler. Cropped image. Typical applications: Salt or electrical scrap processing

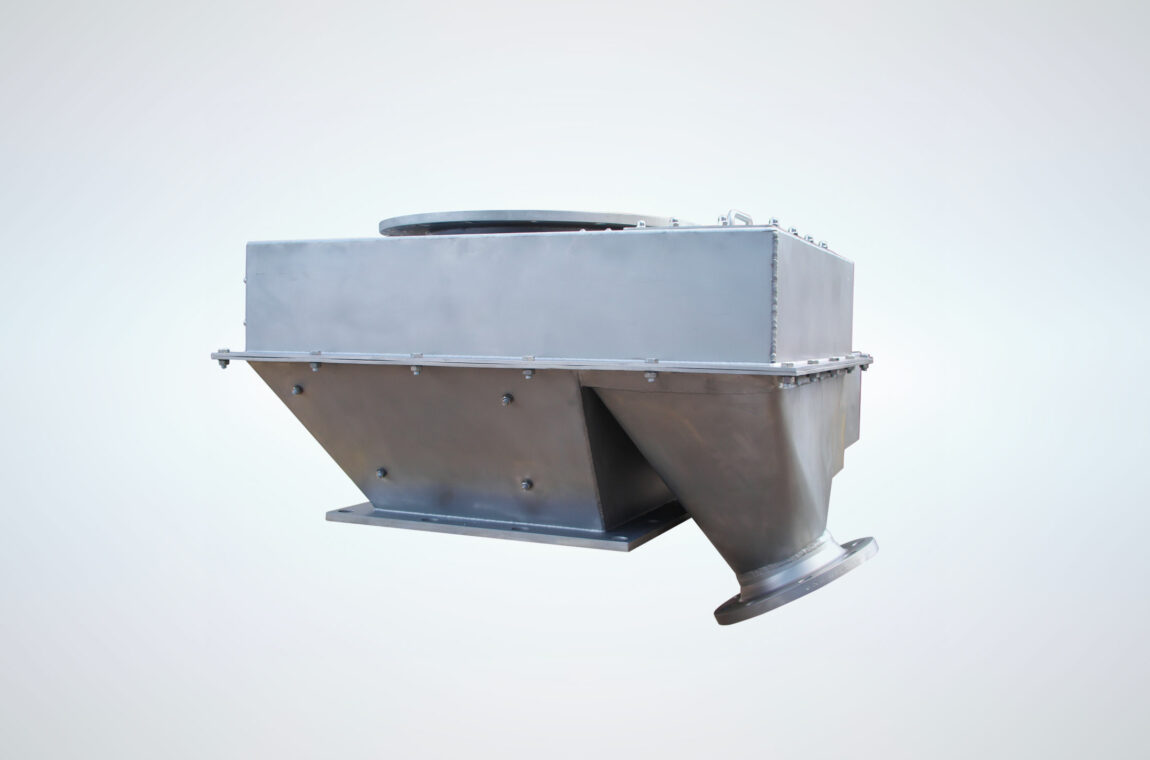

Downpipe swivel sampler. Typical applications: Salt or electrical scrap processing
Drop tube swivel sampler Functional principle, the product flow is passed through the device and a representative sample is taken.

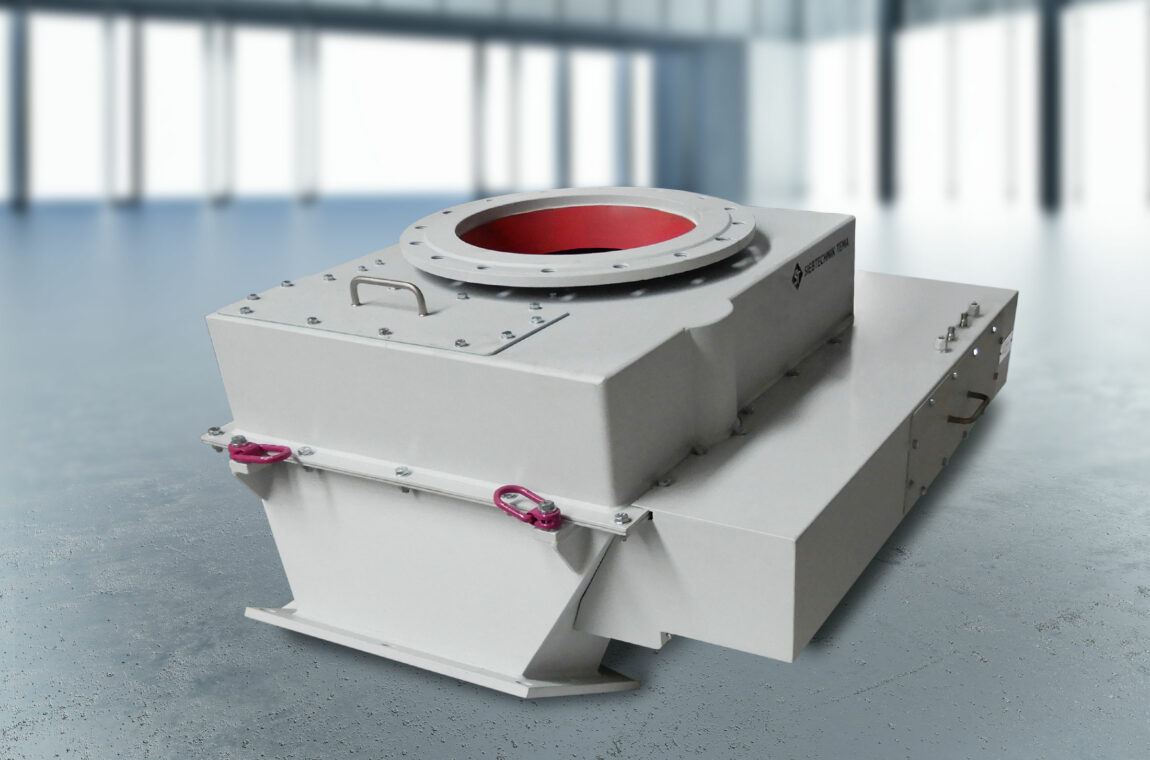

Downpipe swivel sampler
Drop tube swivel sampler - slotted vessel takes sample - you can see how the sample "falls" through the sampler, the slotted vessel has taken the sample and empties it into the sample discharge chute.
Downpipe swivel sampler - slotted vessel takes sample
Downpipe swivel sampler
Downpipe swivel sampler
Downpipe swivel sampler from outside, close-up, 3D animation
Downpipe swivel sampler
Downpipe swivel sampler - slotted vessel takes sample
Downpipe swivel sampler - slotted vessel takes sample
The downpipe spoon sampler is used to take representative samples through the entire chute cross-section.

Downpipe slot vessel sampler

Removal of fine-grained, non-abrasive bulk material samples across the entire chute cross-section for low installation heights.

Leer más
Piston sampler for selective sampling from the material flow

Piston sampler

Sampling from the falling product stream for fine-grained materials. Defined sample quantity for each extraction.

Leer más
Screw sampler with electric drive

Screw Sampler

Sampling from the falling product stream for fine-grained materials. Variable sample quantity due to the duration of sampling.

Leer más
