Piston sampler

Defined sample volume

Piston sampler for selective sampling from the material flow

Sampling from the falling product stream for fine-grained materials. Defined sample quantity for each extraction.

Advantages of Piston samplers

  • Defined sample quantities with filled sample flask
  • Easy to operate
  • Low maintenance
  • Quick to dismantle
  • Several drive variants
  • Easy to clean

Operating behavior & mechanical features

Piston samplers protrude into the material flow and take a punctual sample from the falling product.

Sampling is carried out via a sample collection tube protruding into the material flow, which is provided with an opening into which material can fall. At the time of sampling, a pneumatically actuated piston is pushed through the sample collection tube from the waiting position in the direction of the material flow. This empties the sample collection tube. After a pause time, the piston then moves back and takes the newly collected sample material with it. The sample material obtained in this way can be transferred to a pipe socket outside the main pipe.

The term punctual sample is used because only a partial area of the product-bearing cross-section is recorded. Despite this partial detection, Piston samplers can still generate representative samples. This is guaranteed, for example, if the product flow is homogeneous across the cross-section and none of the properties to be analyzed are linked to the particle size. However, if these are dependent on the particle size, we recommend using a sampler that covers the entire cross-section, such as our Downpipe / slurry sampler.

Gallery

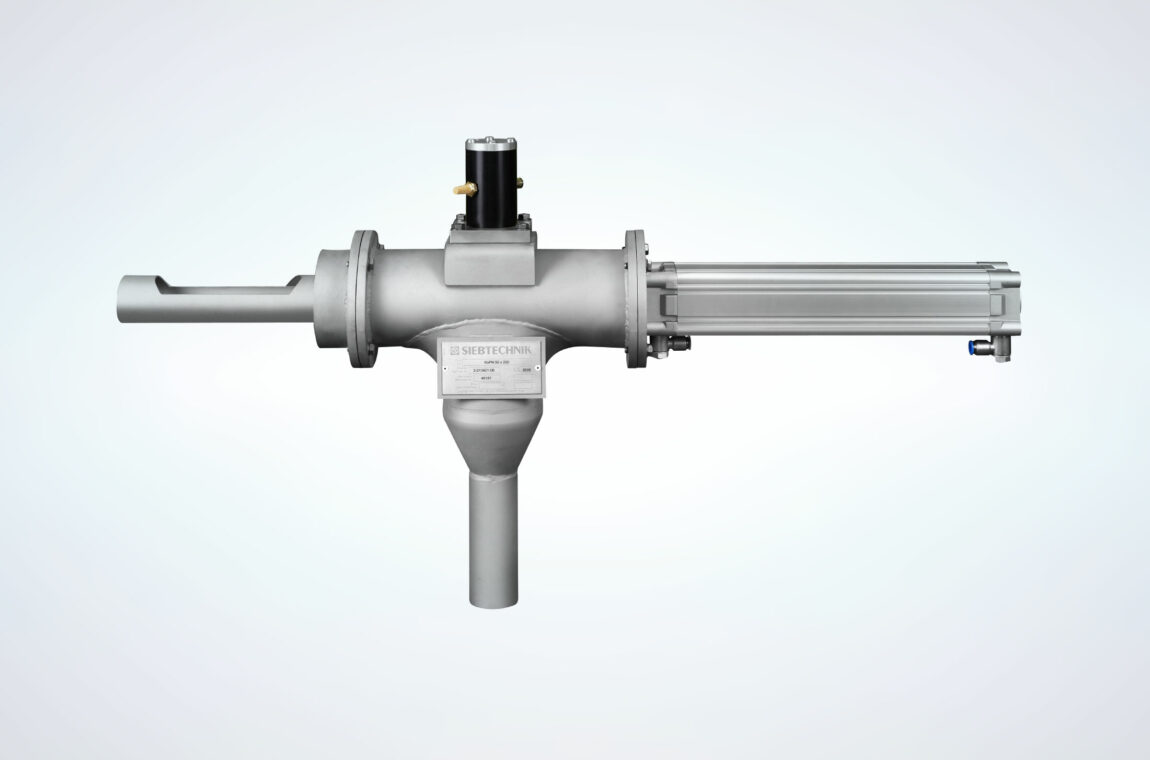

Piston sampler side view
Piston sampler KoPN 50/250

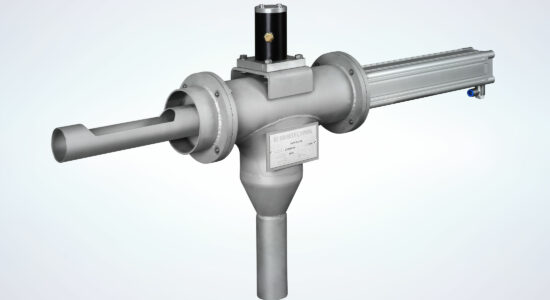

Piston sampler for selective sampling from the material flow

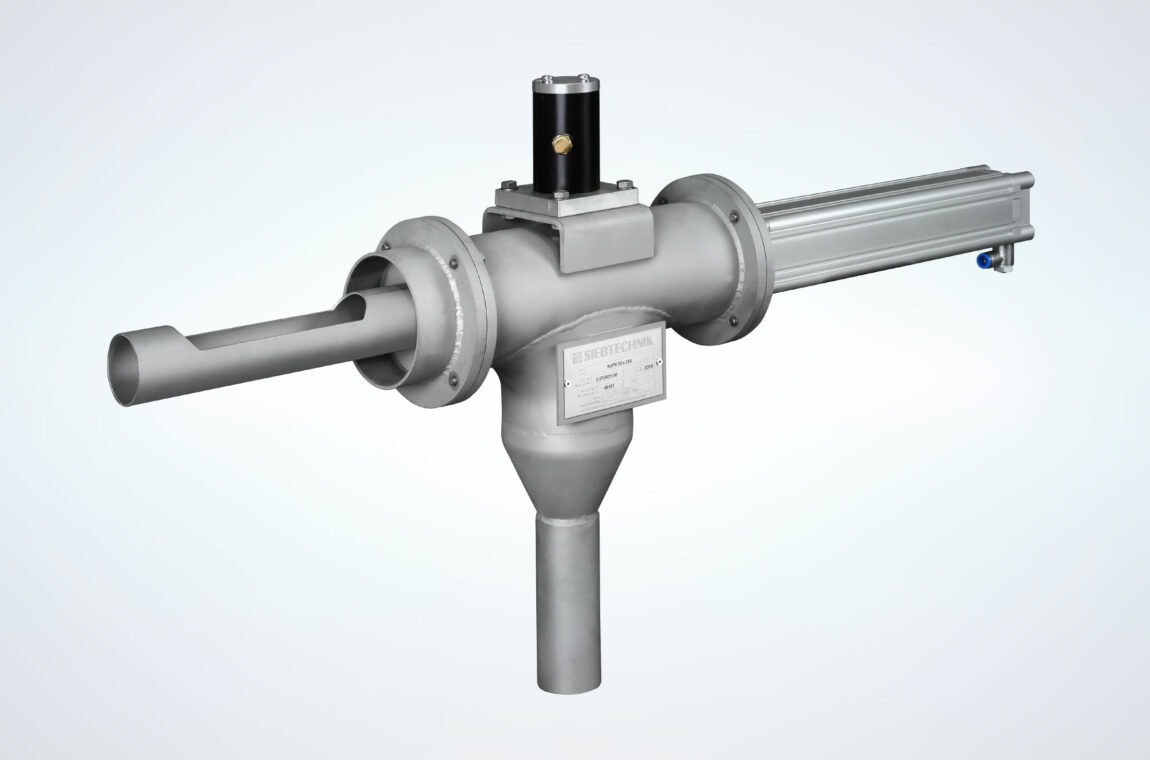

Piston sampler KoPN 50/250
