Piston sampler
Sampling from the falling product stream for fine-grained materials. Defined sample quantity for each extraction.
Sampling from the falling product stream with separation of fine material.
Advantages of Clinker sampler
- No disruptive fixtures in the material flow
- Easy to operate
- Low maintenance
- Easy to inspect
Operating behavior & mechanical features

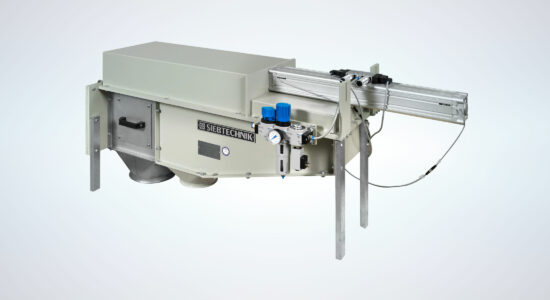

Clinker sampler, Type KPNS take a punctual sample from the falling product.
For this purpose, a sample spoon, which fills with sample material over a defined time, is pneumatically inserted into the product flow. When the sample spoon is withdrawn, it is scraped off by a scraper inside the sampler housing and the material sample is pre-classified via a rigid sieve grid.
The undersized and oversized material obtained from the sample material can be transferred via pipe sockets for further analysis. Any fraction that is not required can be fed directly back into the main material flow.
