Jaw crusher – Laboratory
Our jaw crushers for coarse crushing of brittle, medium-hard to hard materials are now also available with an integrated divider.
The right jaw crusher for every application – our selection makes it possible! SIEBTECHNIK TEMA offers models for laboratory setups with integrated control, feed hopper and collection container (indicated by the -L at the end of the model designation), as well as variants that can be integrated into systems.
Areas of application for our jaw crushers
Jaw crushers are used for coarse crushing of brittle, medium-hard to hard materials up to a Mohs hardness of approx. 8.5. Depending on the model, crushing ratios of up to 1:200 are possible. All of our devices impress with many features that make your work easier.
High end finishes
of up to 90% < 1 mm, crushing ratios of up to 1:200 can be achieved, depending on the crusher size, material and set crushing gap.
The final fineness obtained is largely determined by the set discharge gap, the stroke and the shredding behavior of the material.
Fixed crushing jaw, which is designed as a door
This enables the crushing chamber to be opened quickly without tools for cleaning, removal of impurities and full inspection of wear on the crusher jaws and side wear plates.
Infinitely adjustable crushing gap
This can be read off via a scale on the housing. The zero point of the scale can be readjusted if the crushing jaws are worn.
Reversible overload protection
From size EB 100×80-L
Crushing jaws can be rotated by 180
This doubles the service life of the crusher jaws, as the main wear usually occurs in the area of the smallest crushing gap.
Low-maintenance and lubricant-free Crushing & Milling
With the sealed and lifetime-lubricated bearings up to size EB 200×125-L.
Low-contamination Crushing & Milling with crushing jaws made of
Hard cast steel, stainless steel, tungsten carbide or zirconium oxide
Operating behavior & mechanical features
Crushing & Milling in the Jaw crushers takes place in a wedge-shaped crushing chamber between a fixed and a movable crushing jaw. In the upper suspension, the movable crusher jaw is driven by an eccentric shaft and supported in the lower area by a continuously lockable eccentric shaft. Due to this special geometry, the crusher jaw performs an elliptical circular movement both in the upper suspension and at the discharge gap. Due to this sequence of movements, the crushing chamber is reduced with each rotation, which leads to material crushing, but is also enlarged so that material is loosened up and can slide down. The wedge-shaped form of the crushing chamber and the stroke specified by the eccentric shaft allow the material to slide deeper into the crushing chamber with each revolution until it can leave the crushing chamber crushed according to the set gap.
The arrangement of the movable crushing jaw enables both a high throughput rate and a high achievable final fineness, whereby this depends not only on the design but also on the size of the set discharge gap on the crusher and the crushing behavior of the crushed material.
Lista de aplicaciones
- A
- B
- C
- D
- E
- F
- G
- H
- I
- J
- K
- L
- M
- N
- O
- P
- Q
- R
- S
- T
- U
- V
- W
- X
- Y
- Z
- Mostrar todo
Gallery
Estás viendo un contenido de marcador de posición de Predeterminado. Para acceder al contenido real, haz clic en el siguiente botón. Ten en cuenta que al hacerlo compartirás datos con terceros proveedores.
Más información
Crushing of Ferro-Alloy

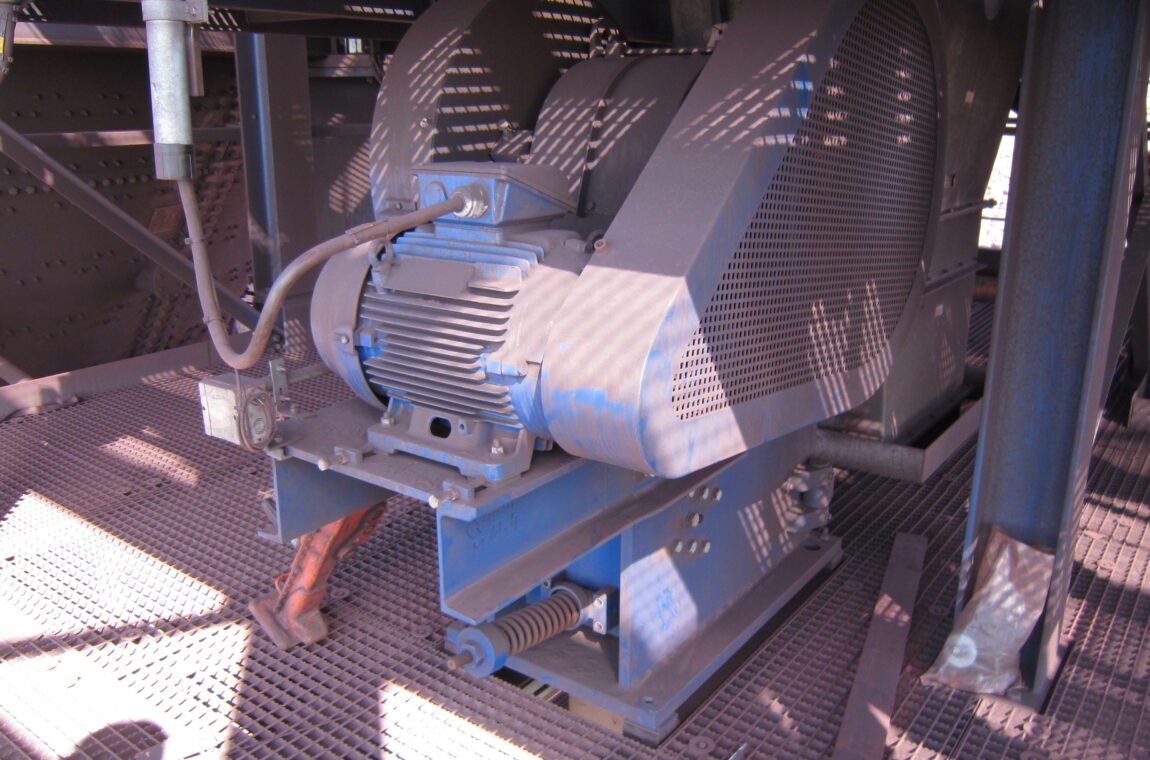

Jaw crusher type EB 30x25

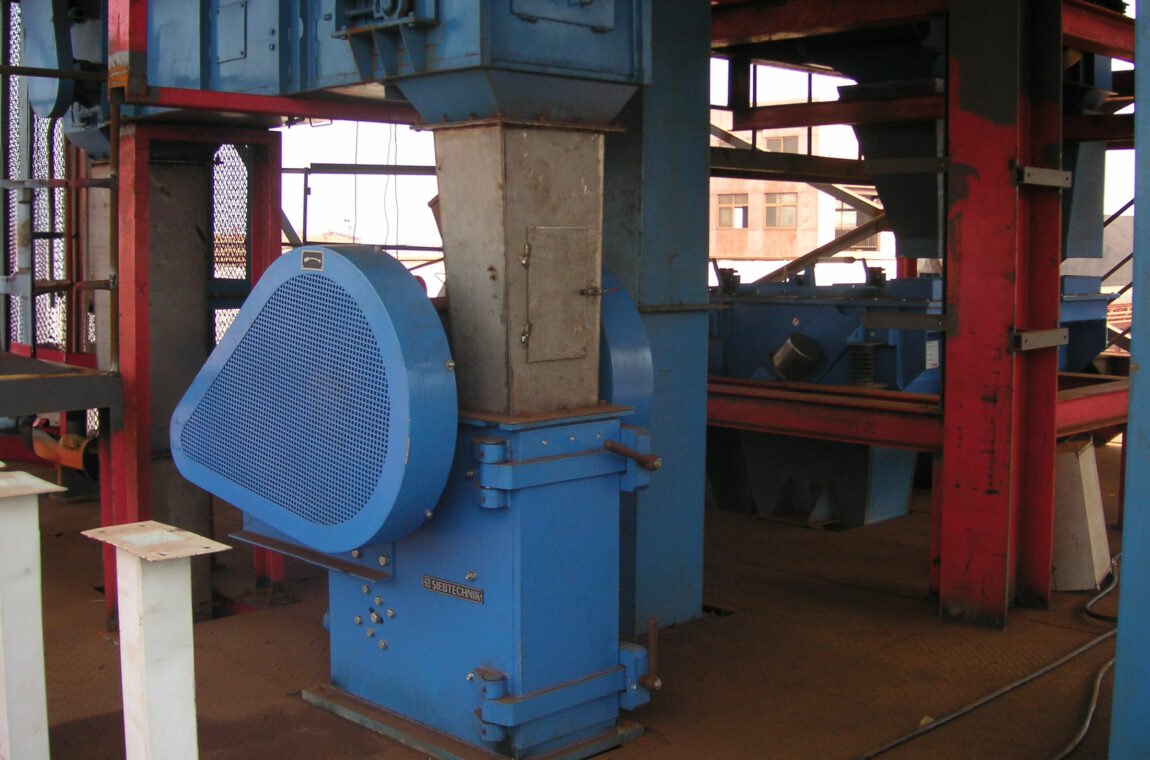

Jaw crusher type EB 30x 25

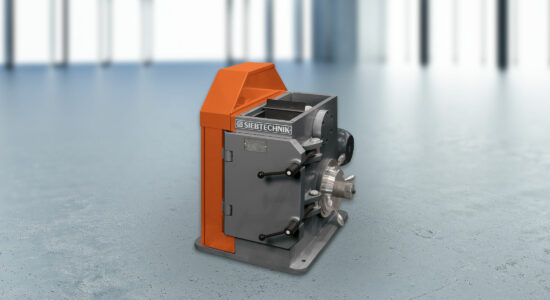

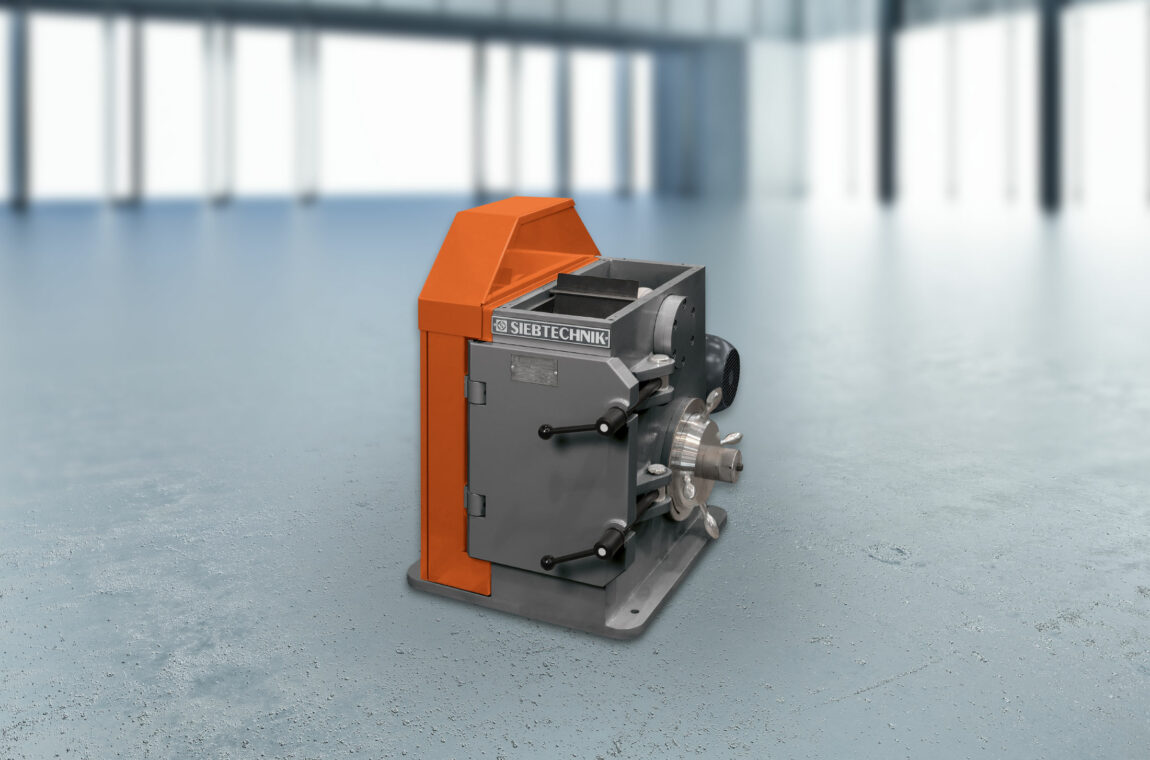

Jaw crusher type EB 200x125
Jaw crusher (single-toggle crusher) EB 150x100 TL
EB single-toggle crushers (jaw crushers) in four different sizes. From left to right: EB300x250L - EB200x125L - EB150x100L - EB100x80L
