Turnstile divider
Depending on the design, the fed material is first homogenized and metered to the dividing plate. The material is divided using rotary arms, which distribute the material on a dividing plate.
This Splitter is used for dividing large sample quantities, such as those found in bulk goods handling in ports or mining operations.
Advantages of Rotary dividers
- Low-wear and low-maintenance design
- Fixed division ratio for continuous operation
- Intermittent operation possible.
- Simple structure
Operating behavior & mechanical features
The Rotary divider has a vertically arranged disk with openings, which is set in rotation by a motor.
The sample material is fed evenly to the Dividers via a dosing device and directed onto the rotating disk. It passes through the opening in the disk as a «sample» or is rejected by the disk as a «discard».
Due to the simple design, the division ratio (1:2 to 1:130 depending on the type) of this divider can no longer be varied after production.
Gallery
Estás viendo un contenido de marcador de posición de Predeterminado. Para acceder al contenido real, haz clic en el siguiente botón. Ten en cuenta que al hacerlo compartirás datos con terceros proveedores.
Más información

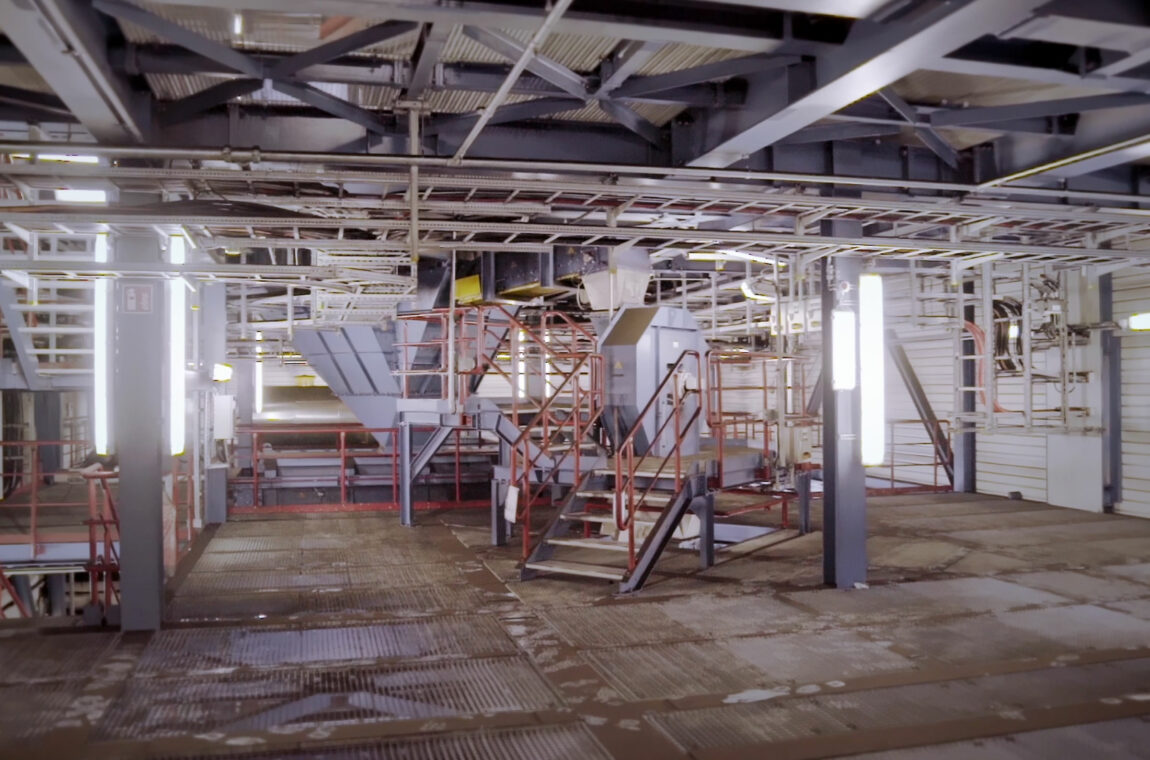

Rotary divider in the coal-fired power plant

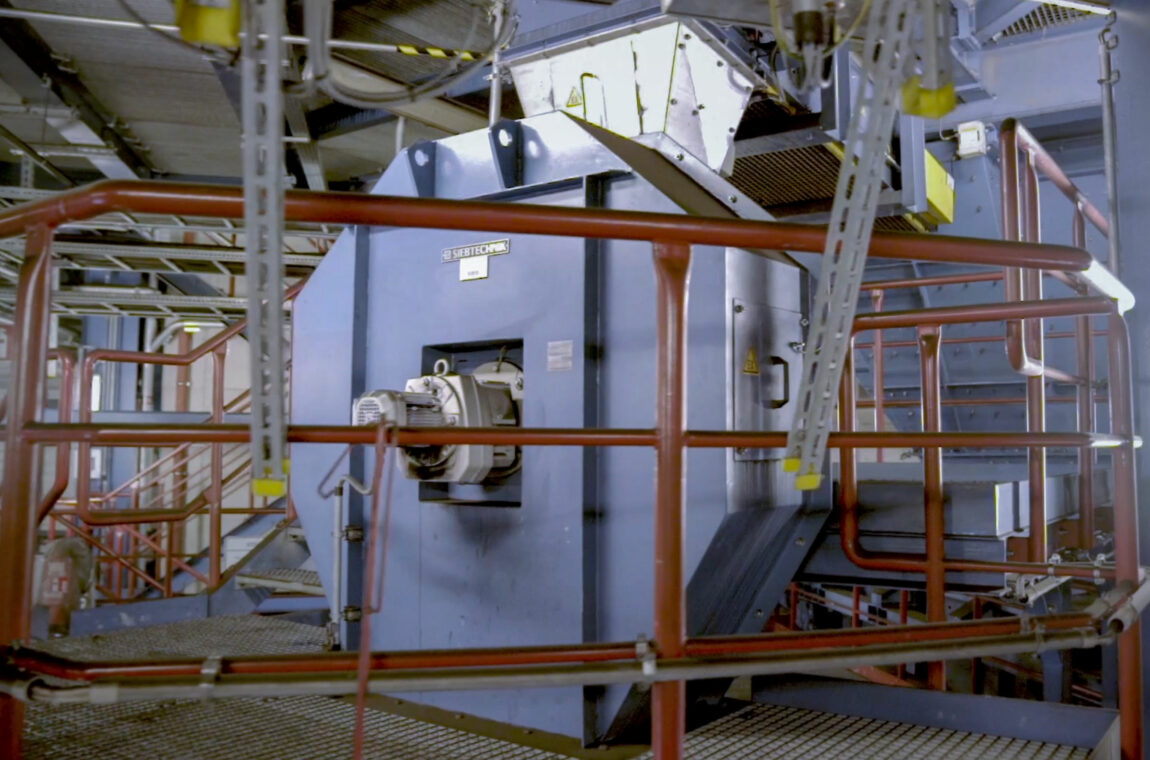

Rotary divider in the coal-fired power plant

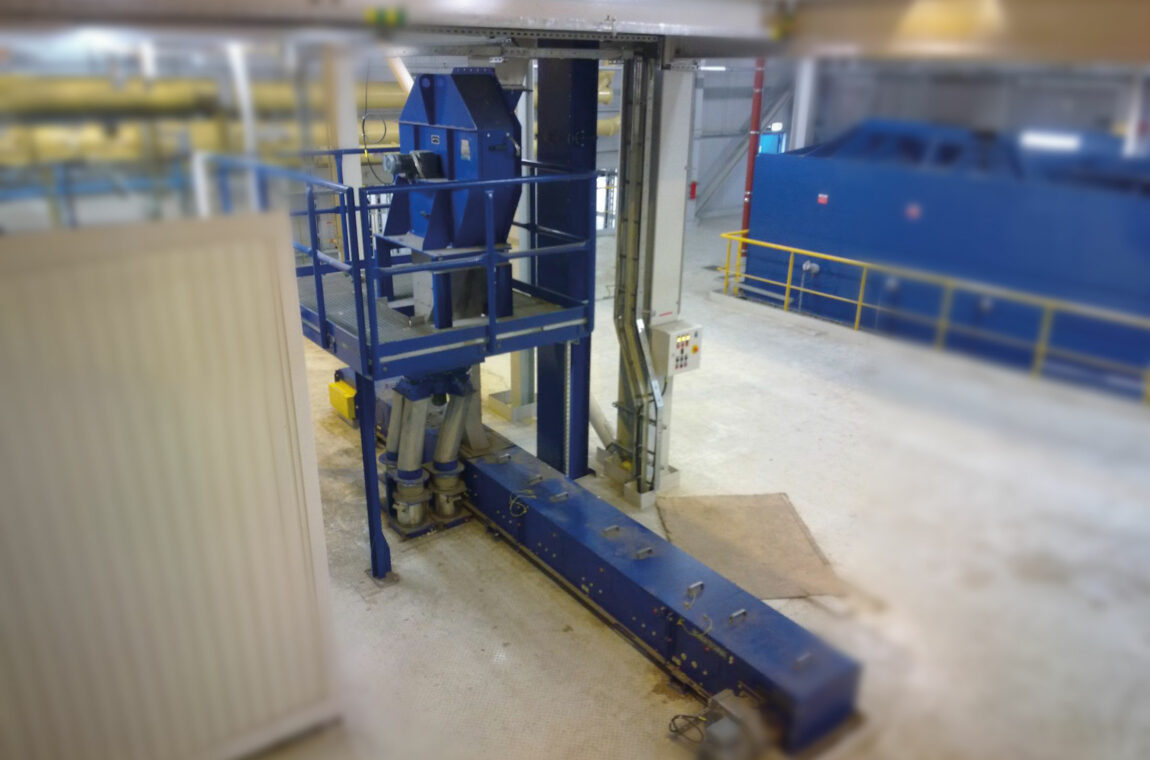

Rotary divider - carbon
Rotary divider - carbon

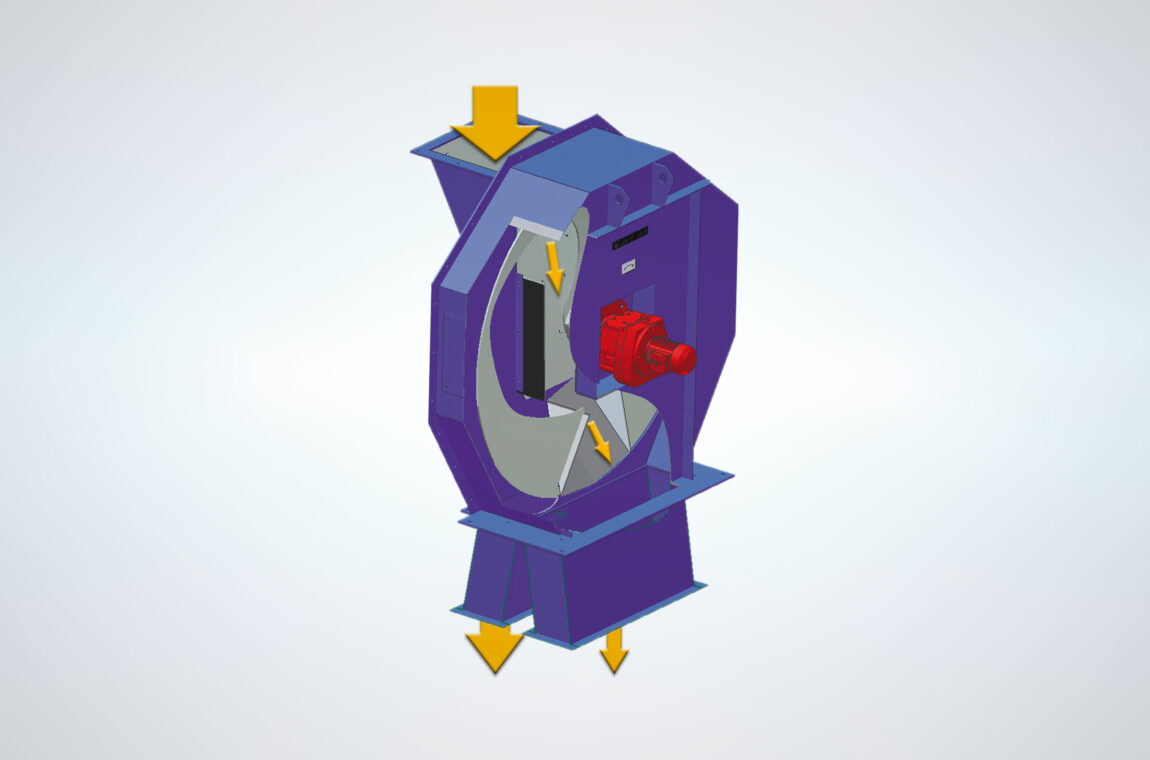

Rotary divider principle sketch
